Mapon Expert GPS fleet tracker with the Mapon logo.

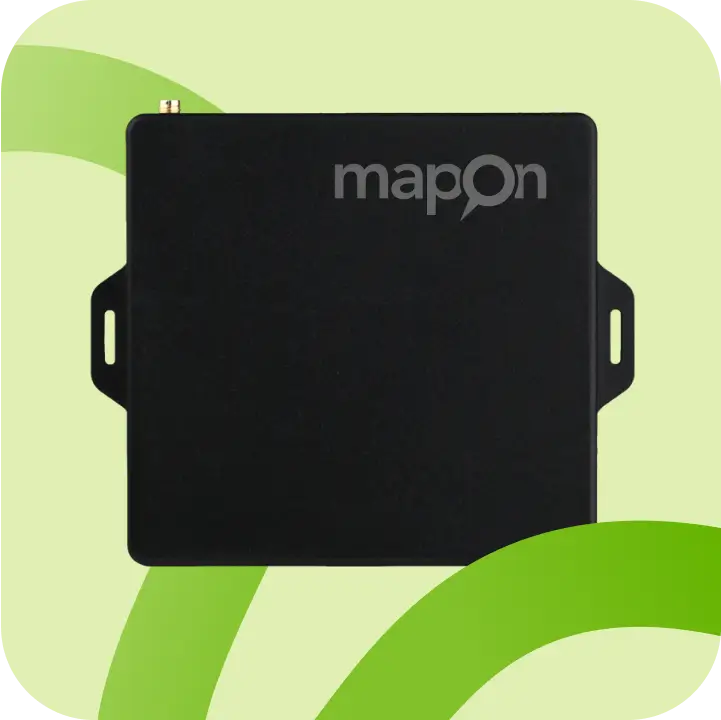

Mapon Expert: Reliable GPS Fleet Tracker

Mapon Expert GPS fleet tracker with the Mapon logo.
Get a quote

Choose from a Wide Range of Solutions and Add-ons

Fuel Management
Remote Tachograph Download
Driver Behaviour Monitoring
GPS Fleet Tracking
Cold Chain Monitoring
Fleet Maintenance
Fleet Efficiency
Asset tracking

Companies that Use our Expert Device

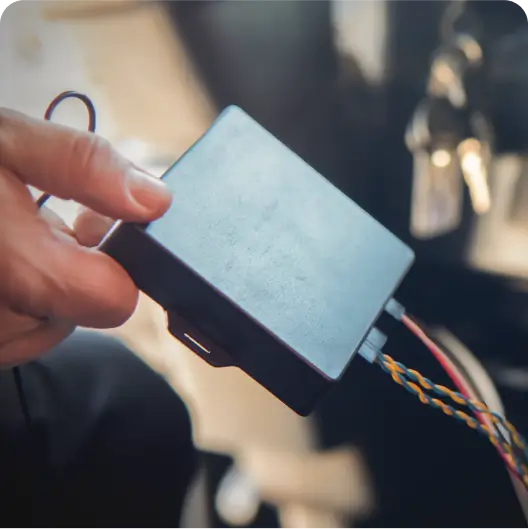

Eliminate the Hassle and Install the GPS Fleet Tracker Yourself

Get a Free Quote

Not valid Full Name
Not valid Company
Invalid phone number
Not valid Email

Main features

Standalone mode with intelligent memory control, if connection with server not available
Intelligent data acquisition and transfer algorithm via 2G/3G/4G mobile networks depending on model
Smart data roaming algorithm
Realtime GPS and sensor data acquisition and transfer
Restart button
Interfacing to vehicle on-board systems
Internal 3-axis accelerometer

General

Size and weight

Height: 101 mm, Width: 123 mm
Depth: 22 mm, Weight: 154 g

Memory

64Mbit Flash memory

Power and battery

Li-ion backup battery 700 mAh
Operating voltage 7V to 30V DC
Average current consumption 80 mA
Maximum current consumption 2.5A

Interfaces

4 digital inputs (max 30V)
4 analog inputs 0 to 30V
3 CAN bus interfaces
3 RS-232
K-Line interface
RS-485 interface
1-wire input (up to 6 devices)
3 digital outputs
SMA connector for GPS antenna
USB port

GNSS/Cellular

4G LTE CAT 1

LTE FDD: B1/B3/B7/B8/B20/B28A
GSM/EDGE: B3/B8

Location

GPS, GLONASS, Galileo, QZSS
Acquisition: -149dBm
Tracking: -167dBm
Reacquisition: -161dBm

BLE

BLE 5.2

Other

Status indicator

LED

Environmental requirements

Operating temperature: -20° to +45° C (with battery)
Relative humidity: 5% to 95%
Non-condensing

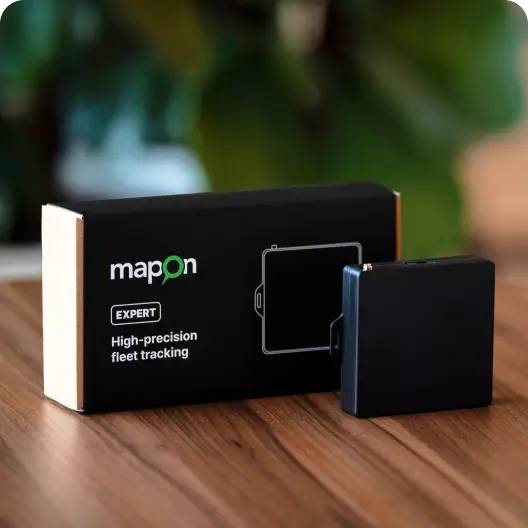

Standard set

Mapon Expert 2
External GPS antenna
Documentation

Frequently Asked Questions

What solutions can you access with the Mapon Expert device?

How does the self-installation device differ from the technician-installed device?

How to order the self-installation tracking device?

What is included in the Mapon Expert self-installation order?

Is this GPS fleet tracker appropriate for my operations?
